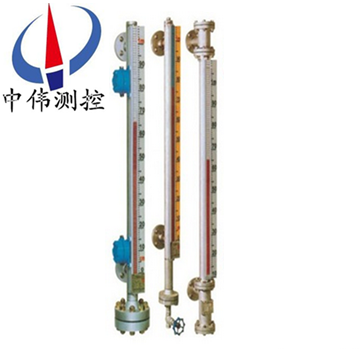

Magnetic Level Gauge with Flip Plate

•

The magnetic flange level gauge can be used to measure the medium level of various towers, tanks, sp…

Productoverview:

ZW-UHZ series Magnetic level gauge The most notable feature is the liquid medium and the indicator is completely isolated, so in any case are very safe, reliable, durable, and liquid level meter with various types of alarm and control switch, can achieve the level or the position of the upper and lower limit offside alarm, control or chain; static pressure liquid level transmitter or reed - the resistance type liquid level transmitter equipped with the liquid level can be, interface signal into a two-wire 4-20mADC standard signal, realize remote indication, detection, recording and control.

The magnetic flap is suitable for all kinds of industrial production process pressure (or open) liquid storage equipment (tower, cylinder, tank, spherical container and boiler liquid level detection of liquid medium). Can display the work and all kinds of liquid level height.

Liquid level meter has the characteristics of direct reading display, does not need to set level meter, can monomer for the whole range of measurement. The equipment has less holes, clear display, eye-catching signs, visual reading etc..When the liquid level meter with direct display instrument can save the intermediate transmission signal detection system to improve the transmission accuracy.

Two, work principle:

1, the basic type

ZW-UHZ series <strong> magnetic level gauge</strong> according to the principle of buoyancy and magnetic coupling developed. When measured in the container level lift, liquid level gauge leading tube float with lifting, the permanent magnets in float through the relay to the magnetic coupling indicator, drives a red and white turn column flip 180 degrees, when the liquid level rises, turn column turned from white to red, when the liquid level drops, by turning column red to white, red and white circles indicator at the actual height of the medium level in the container, so as to achieve the level of instruction.

2, limit switch output

The use of magnetic float with the liquid level gauge is installed in the mobile, the vertical tube set position switch, realize on-off control or alarm.

3, the electric remote

The magnetic level gauge transmitter installation. The sensor and transmitter converter is composed of two parts, the magnetic float moves up and down by the magnetic coupling of the measuring element in intraductal action, obtain the resistance signal changes, summoned into 0~10 or 4 ~ 20mA standard current signal output, and digital display connected to the instrument or computer, realize remote display and control.

Three, application:

ZW-UHZ series <strong> magnetic level gauge</strong> and liquid level control switch and a liquid level remote transmission device supporting the use of liquid level remote control and display. The liquid level measurement and control so it is widely used in electric power, petroleum, chemical, metallurgy, shipbuilding, construction, environmental protection, food and other industries in the production process.

Four, main features:

1, the display to indicate the level of red, the upper white area is no liquid, intuitive display, eye-catching, luminous effect is good.

2, the liquid level measurement range, from the container size, shape and the limitation of the installation position, measurement process without blind area.

3, the liquid level display and the measured medium is completely isolated, safe and reliable.

4, wetted parts made of different materials, can be applied to the measurement of liquid level of various corrosive media.

5, high temperature, toxic and flammable and explosive medium level measurement, which has very strong applicability.

Five, technical parameters:

1, the basic type

Measuring range: 800110014004700200 H=500 2500300040005000 (6000 0~6000mm by the user to choose);

Indication accuracy: type 526528 + 5mm + 10mm type 524;

Medium density: 0.45g/cm3;

Medium viscosity: <1ST (10-4m2/s);

Flange: (1) PN2.5, 4.0MPa, JB/T82.2-94 DN25 PN4.0 movable flange, flange;

(2) PN6.3, 10, 16.0MPa JB/T82.2-94 DN25 fixed flange flange.

(3) PVC JB/T82.1-94 PN1.0MPa, DN32 flange material. The other flange standard (such as HGJ, GB, ANSI and other standards) please design department and user specified.

2, liquid level alarm

Output: three often three close switch signal;

Working life: >105;

Power supply: 24VDC 220VAC;

Contact capacity: 220VAC 2A;

Alarm accuracy: + 5mm;

Ambient temperature: -40~ + 60 c;

Joint internal thread outlet: M20 * 1.5;

Explosion proof mark: Flameproof D II BT4 certificate number: GYB95141;

This type of IB II BT4 certificate number: GYB95142;

The inductance and capacitance of intrinsically safe cable does not exceed 4.2mH, 0.13 V F;

This type of LB878S or LB978S with safety gate.

3, the level of remote device

Transmission range: 0~6000mm (optional);

Accuracy: + 10mm;

Return difference: + 10mm;

Output signal: 4~20mADC;

Rated load resistance: 250;

Power supply: 24VDC;

Ambient temperature: -40~+60 degrees outlet joint internal thread: M20 * 1.5 explosion proof mark: Flameproof D II BT4 certificate number: GYB95139.

This type of IB II BT4 certificate number: GYB95140

Range (mm): 300~19000;

Medium density (g/cm3): 0.5 ~ 2;

Medium viscosity: less than 0.02Pa.S;

Working temperature: -40 ~ 350;

The pressure level (MPa): less than 32;

The measurement accuracy (mm): less than 10;

Installation: side mounted, top mounted, bottom mounted;

Protection grade: IP65;

Explosion proof grade: IB II CT4 (Ben Anxing), D II (BT3 flameproof);

Transmission mode: 4 ~ 20mA or switch;

Interface: PN4.5 DN25 HG20593 (flange side mounted);

PN1.0 DN100 HG20593 (top mounted, bottom mounted), can be customized according to the needs of users.

Six, classification and application:

1, insert type magnetic level gauge: liquid level measurement and control of the liquid level gauge is suitable for underground tank, pool.

2, insulation type magnetic level gauge: the liquid level meter is installed a thermal insulation jacket and a steam heat medium in the main base outside. The normal flow of liquid in the body can be maintained. The liquid level measurement and control so it is suitable for easy solidification of liquid. For low boiling point liquid can pass into the cold water as refrigerant agent, to ensure the stability of liquid level. The instrument correctly indicates the measured level.

3, frost proof magnetic level gauge: our factory specially designed for solving the liquid level of cryogenic liquid meter ice products. The insulation jacket is vacuum layer. It can effectively isolate the cold and heat conduction. The main gauge tube does not freeze, frost. In order to ensure the normal use of liquid level meter.

4, strong corrosion resistance type magnetic level gauge: all parts in contact with the medium of the level meter adopts steel plastic composite pipe. All can be applied to various corrosive medium level measurement and control.

Seven, system components and wiring:

1, limit switch output:

A self holding function and reed switch converter, reed switches and converters were installed in the field and control room, by the converter to provide three pairs of contact switch.

2, the electric remote:

A measuring unit and a transmission unit is composed of two parts.

3, explosion-proof:

A with explosion-proof, upper and lower limit switch output:

Safety explosion-proof switch gate switch and relay contacts of the reed which can be directly provided to users of a normally closed or open contact. If the user needs to contact more special design orders.

With the explosion of the remote type security b:

Suitable for use in class II (Electrical Equipment Factory), C gas, the surface temperature of group T4 (135 C).

Note the use of c:

The shell is provided with external transmitter, users must be reliable grounding.

The use of the safety gate shall comply with the instructions for use of content.

The connecting cable transmitter and barrier for industrial safety end for two core shielded cable, wire cross-sectional area of more than 0.5m, cable distributed capacitance is 0.8 F.

Eight, selection and installation:

1, we must first understand the equipment running their own situation, what is the measuring medium, even if they do not need to know what material, our company also can determine the material according to the medium used equipment.

2, when equipped with the remote meter to do the following, should make the remote meter to gauge leading tube, stainless steel hoop is fixed (disable iron); the remote meter should be on the surface should be oriented and close to the main duct; the remote meter should be zero and gauge zero instructions in the same horizontal line; remote meter and display instrument or computer connection need to wear protective pipe laying or shielding two core cable connection box; a wire inlet hole after laying, requires good sealing, in order to avoid rain, moisture intrusion and the remote meter can not work normally, the junction box in the repair or completion of commissioning should be timely cover.

3, according to the media, cleaning the main duct to remove impurities;

4, for more than a certain length (common type > 3 meters, 2 meters, anti-corrosion type) of the liquid level meter, need to increase the middle reinforcement flange or lug fixed support, to increase the strength and overcome their weight;

5, the installation location, should avoid the material medium or away from the import and export department, to avoid the rapid change of fluid material in local area, affecting the accuracy of liquid level measurement;

6, when debugging, should open the upper guide pipe valve, and then slowly open the valve at the lower part, so that medium smooth entry duct (to avoid the rush of media should be run in the float float, cause drama column fluctuation, affecting the display accuracy), observe the red ball magnetic flip is normal, and then close the lead pipe valve, open the drain valve so, the main duct level drops, according to the method, the operation three times, it is normal, can be put into operation (except special corrosive liquid); magnetic level gauge in the market there are other names, also called magnetic level gauge, or magnetic level gauge, also called magnetic float liquid level gauge. But they need to know the order parameter is certain, such as corrosive medium needs anticorrosive material, corrosion corrosion grade equivalent grade according to the changes of the medium. For example, the special situation of their own equipment, determine the installation mode of the magnetic level gauge, because some places do not fit or do not apply some installation methods.

Nine, use and maintenance:

Use：

1, auxiliary instrument and accessories with the specific content of the corresponding instrument and accessories see instructions.

2, to prevent a distance or move away in the process of float moves up and down in the main duct damage, lateral supporting special steel factory calibration gauge (with color logo) will hold the magnetic float. So after receiving the product or after installation, please remove the correction magnet, so that the float can move along with the liquid level, before use if the magnetic reversal of inconsistent color correction, available the magnetic suction along the instrument can work normally.

3, level meter installed, with magnetic correction of magnetic guidance once to zero below zero above display red, white display.

4, level gauge according to user needs with a heating jacket or an electric heating device, such as when ordering does not select this option, and in the installation of self used heat pipe, temperature and mixed with heat generated by the device can not exceed the rated temperature level meter.

5, level meter into travel, should open the valve on the liquid guide pipe, and then, the liquid valve open long, let the liquid medium smoothly into the main canal, avoid the liquid medium with a rapid rise caused by magnetic reversal failure or disturbed (in case of this phenomenon can be used to correct the magnet).

Maintain：

1, level gauge cylinder should be solid impurities and magnetic impurities, so as to avoid jamming and weaken the buoyancy of the float.

2, according to the media, the leading tube can be cleaned regularly, cleaning tube deposition of impurities.

3, clean or replace the float on the liquid, open the drain flange into the magnetic float, should pay attention to the heavy and magnetic end up not flip!

4, the low temperature liquefied gas and special products, vacuum jacketed insulation main body level meter, the installation process be careful not to damage the jacket, so as not to affect the quality of the products.

Ten, matters needing attention:

1, auxiliary instrument and accessories with the specific content of the corresponding instrument and accessories see instructions.

2, to prevent a distance or move away in the process of float moves up and down in the main duct damage, lateral supporting special steel factory calibration gauge (with color logo) will hold the magnetic float. So after receiving the product or after installation, please remove the correction magnet, so that the float can move along with the liquid level, before use if the magnetic reversal of inconsistent color correction, available the magnetic suction along the instrument can work normally.

3, level meter installed, with magnetic correction of magnetic guidance once to zero below zero above display red, white display.

4, level gauge according to user needs with a heating jacket or an electric heating device, such as when ordering does not select this option, and in the installation of self used heat pipe, temperature and mixed with heat generated by the device can not exceed the rated temperature level meter.

5, level meter into travel, should open the valve on the liquid guide pipe, and then, the liquid valve open long, let the liquid medium smoothly into the main canal, avoid the liquid medium with a rapid rise caused by magnetic reversal failure or disturbed (in case of this phenomenon can be used to correct the magnet).

Eleven, the selection of encoding:

Twelve, please provide the following data:

1, specifications; magnetic level gauge: ZW-UHZ series;

2, the measured medium Name: medium density: if you do not know the density, can tell us the name of the medium, which is composed of mixed liquid to know several liquid;

3, the instrument measuring range: also known as nominal length, which is a flange of the center distance, or look at the scale of products already in use;

4, working pressure: pressure;

5, working temperature: measure the temperature of the liquid;

6, material requirements: wetted materials, such as do not know what kind of material, can give us advice (general liquid is what material we can use what material);

7, supporting the supply of flanges, bolts and nuts, valve, sealing washers and other accessories;

8, standard: flange flange nominal diameter, using conventional flange is DN20 or DN25;

9, special requirements: please indicate in detail before ordering, such as whether or not to take the remote, insulation jacket etc..

Customer service service commitment:

1, our level meter series products quality problems within twelve months, responsible for free maintenance.

2, the warranty period if the products of our company have any quality problems, our company is responsible for free repair or replacement.

3, the warranty period if the user use undeserved, cause damage to the product, our company is responsible for the maintenance, collect the damaged parts cost.

4, after the warranty period of product quality problems, our company is responsible for the maintenance, collect the damaged parts cost.

5, if the user needs to our service, our company in the province of the user service personnel arrived at the scene within 12 hours, arrived at the scene 48 hours outside users.
